KY-021 迷你磁簧模組 Mini Magnetic Reed Switch Module

Arduino magnetic reed switch module Keyes KY-021. A reed switch is a magnetic sensor that is normally open and gets closed when exposed to a magnetic field.

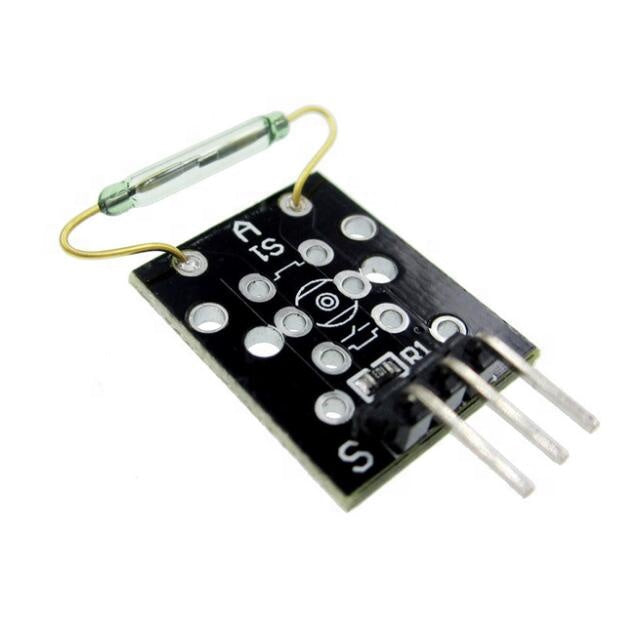

The KY-021 Mini Magnetic Reed Switch Module consists of a 10kΩ resistor and a small reed switch actuated by a magnetic field, commonly used in mechanical systems as proximity sensors. Compatible with popular electronic platforms like Arduino, Teensy and ESP8266.

Connect the module's Power line (middle) and ground (-) to +5 and GND respectively. Connect signal (S) to pin 2 on the Arduino.

The following sketch will turn on the pin 13 LED on the Arduino when the module detects a magnetic field. Place a magnet near the KY-021 to activate the reel switch.

int led = 13; // LED pin
int reelSwitch = 2; // magnetic senso rpin
int switchState; // variable to store reel switch value

void setup()
{
  pinMode (led, OUTPUT);
  pinMode (reelSwitch, INPUT);
}

void loop()
{
  switchState = digitalRead(reelSwitch); // read the value of digital interface 2 and assign it to switchState

  if (switchState == HIGH) // when the magnetic sensor detect a signal, LED is flashing
  {
    digitalWrite(led, HIGH);
  }
  else
  {
    digitalWrite(led, LOW);
  }
}
