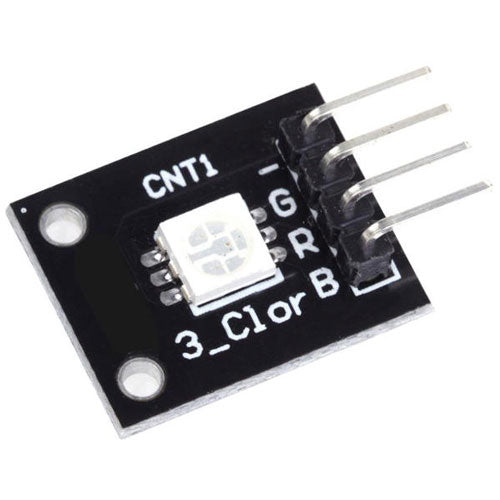

KY-009 三色全彩 RGB Led Smd Module

KY-009 三色全彩 RGB Led Smd Module

HK$15.00
HK$15.00
特價 售罄
查看完整資訊

KY-009 Description

RGB full color LED Module KY-009 for Arduino, emits a range of colors by mixing red, green and blue. The amount of each primary color is adjusted using PWM.

KY-009 Specifications

The KY-009 RGB Full Color LED SMD Module consists of a 5050 SMD LED, use with limiting resistors to prevent burnout. Compatible with popular electronics platforms like Arduino, Raspberry Pi and ESP8266.

Operating Voltage: 5V max

  • Red 1.8V ~2.4V
  • Green 2.8V ~ 3.6V
  • Blue 2.8V ~ 3.6V

Forward Current: 20mA ~ 30mA

Operating Temperature: -25°C to 85°C

Dimensions: 18.5mm x 15mm

KY-009 Connection Diagram

You need to use resistors to prevent burnout, check the 5050 LED SMD Datasheet on the downloads section for more info.

Arduino KY-009 connection diagram
