KY-006 無源蜂鳴器模組 Passive Buzzer

適用於Micro:Bit, Arduino, Raspberry PI

Passive Buzzer 無源蜂鳴器

可發出不同頻率的聲音

有源蜂鳴器和無源蜂鳴器的分別:

有源蜂鳴器: 內有電路，通電後能發出固定頻率的聲音，常用於警報器。

無源蜂鳴器: 內不設電路，需以微處理器(Micro:Bit, Arduino, Raspberry PI)發出頻率訊號發聲，可發出不同頻率的聲音，可播放樂曲，直接通電不會發出聲音。

Suitable for Micro:Bit, Arduino, Raspberry PI

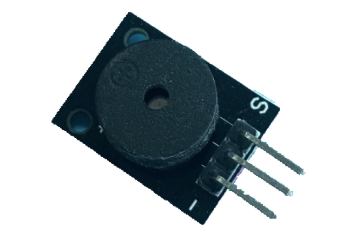

The KY-006 Buzzer Module consists of a passive piezoelectric buzzer, it can generate tones between 1.5 to 2.5 kHz by switching it on and off at different frequencies either using delays or PWM.

Operating Voltage 1.5 ~ 15V DC
Tone Generation Range 1.5 ~ 2.5kHz
Dimensions 18.5mm x 15mm

Micro:Bit PXT Sample Code:

https://makecode.microbit.org/_TRmDqjV58EUw
