Elecfreaks IoT:Bit Iot Expansion Board for micro:bit

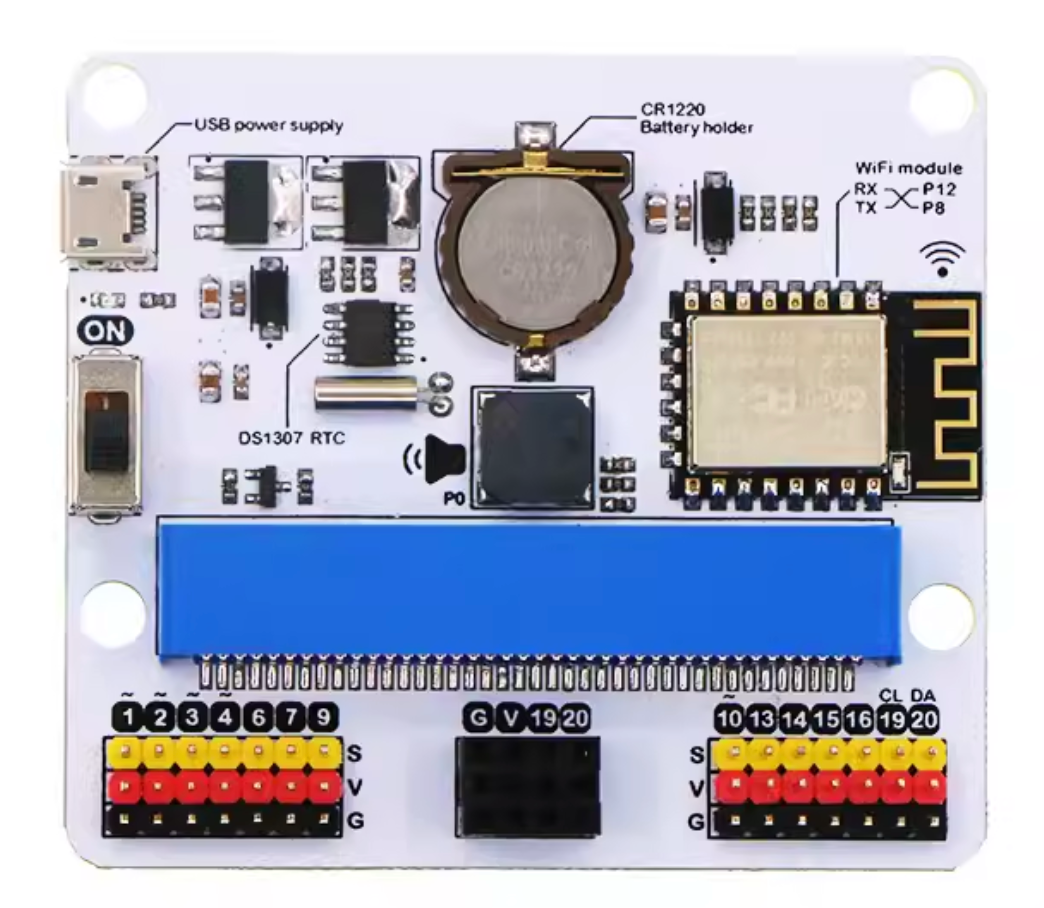

IOT:bit is an expansion board based on IoT for micro:bit. It uses ESP8266 as WIFI expansion board and serial port to communicate with micro:bit. It also has extended all available IO port of the micro:bit which is leaded by GVS and you can extent various 3V E-blocks as LED, photosensitive and servo by using it. At the same time, the IOT:bit with an on-board buzzer for outside sound and an on-board RTC clock for timing without power supply. Let's creating your own IoT by makecode!

IOT:bit是一款基於IoT (Internet of Things) 物聯網的micro:bit擴充板。 它使用ESP8266作為WIFI擴充板，並透過串口與micro:bit進行通訊。 它還擴展了micro:bit的所有可用IO端口，這些端口透過GVS引腳引出，您可以透過使用它來擴展各種3V電子模塊，如 LED、光敏感測器和舵機； 同時，IOT:bit 還配備了一個板載蜂鳴器，用於播放外部聲音，以及一個板載RTC時鐘，用於在沒有電源的情況下進行定時。

立劇透過MakeCode來創建您自己的物聯網專案吧！
