37款傳感器套裝 Sensor套件 (Micro:bit / Raspberry PI / Arduino 適用)
37款傳感器套裝 Sensor套件 (Micro:bit / Raspberry PI / Arduino 適用)
無法載入取貨服務供應情況

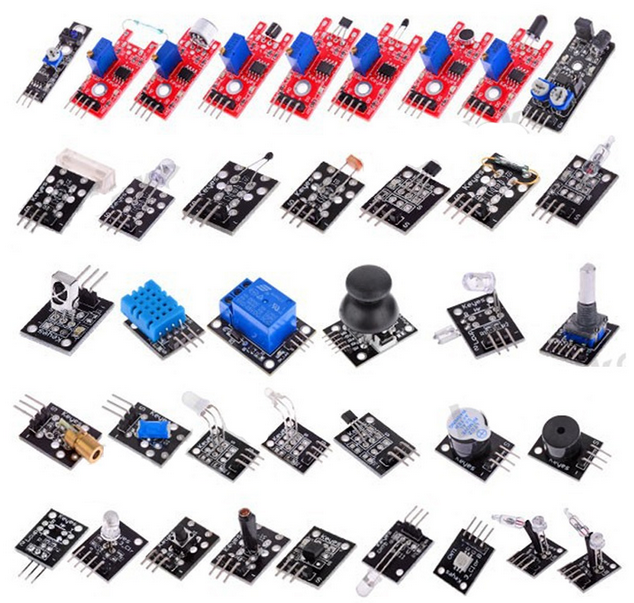

一套37件傳感套裝，適合 Arduino, Arduino Uno R3, Micro:bit, Raspberry PI 使用
可檢測光度，溫度，濕度，加速，磁力等等
**如使用Micro:Bit, 請配合Robot:Bit 以提供5V電壓, 否則不能驅動部份傳感器**
KY-001 溫度傳感器 1 x DS18B20 Temperature Sensor
KY-002 振動開關 1 x Tap module
KY-003 霍耳磁力 1 x Hall magnetic
KY-004 按鍵開關 1 x Key Switch
KY-005 紅外發射1 x IR mission
KY-006 無源蜂鳴器 (1 x Passive buzzer)
KY-008 激光頭傳感器 (1 x Laser Transmitter)
KY-009 三色全彩LED (1 x SMD RGB)
KY-010 光折斷器 1 x Light blocking
KY-011 雙色LED (1 x Mini two-color LED)
KY-012 有源蜂鳴器 (1 x Active buzzer)
KY-013 模擬訊號溫度 1 x Analog temp
KY-015 溫濕度傳感器 1 x Temp and humidity (DHT11)
KY-016 三色LED (1 x RGB LED)
KY-017 不適用
KY-018 光敏電阻 1 x Photo-resistor
KY-019 5V 繼電器 (1 x Relay)
KY-020 傾斜開關模組 1 x Tilt-switch
KY-021 迷你磁簧模組 (1 x Mini reed switch)
KY-022 紅外接收模組 1 x IR receiver
KY-023 雙軸搖杆模組 (1 x Joystick)
KY-024 線性磁力霍爾 (1 x Linear hall)
KY-025 大磁簧模組 (1 x Magnetic spring)
KY-026 火焰傳感器 (1 x Flame)
KY-027 魔術光杯模組 1 x Light cup
KY-028 數碼訊號溫度 (1 x Digital temperature)
KY-029 雙色LED (1 x Two-color)
KY-031 敲擊傳感器 1 x Shock
KY-032 避障傳感器 (1 x Avoidance)
KY-033 尋線傳感器 (1 x Tracking)
KY-034 七彩自動閃爍LED (1 x 7 color flash)
KY-035 類比霍爾磁性 1 x Analog hall
KY-036 金屬觸模傳感器 (1 x Metal touch)
KY-037 高感度麥克風 (1 x Small sound)
KY-038 麥克風聲音 (1 x Big sound)
KY-039 手指偵測心跳 (1 x Heartbeat)
KY-040 旋傳編碼器模組 1 x Rotary encoders
教學: http://www.instructables.com/id/Arduino-37-in-1-Sensors-Kit-Explained/
- KY-001 Temperature sensor module
- KY-002 Vibration switch module
- KY-003 Hall magnetic sensor module
- KY-004 Key switch module
- KY-005 Infrared emission sensor module
- KY-006 Small passive buzzer module
- KY-008 Laser sensor module
- KY-009 3-color full-color LED SMD modules
- KY-010 Optical broken module
- KY-011 2-color LED module
- KY-012 Active buzzer module
- KY-013 Temperature sensor module
- KY-015 Temperature and humidity sensor module
- KY-016 3-color LED module
- KY-017 Not Available
- KY-018 Photo resistor module
- KY-019 5V relay module
- KY-020 Tilt switch module
- KY-021 Mini magnetic reed modules
- KY-022 Infrared sensor receiver module
- KY-023 XY-axis joystick module
- KY-024 Linear magnetic Hall sensors
- KY-025 Reed module
- KY-026 Flame sensor module
- KY-027 Magic light cup module
- KY-028 Temperature sensor module
- KY-029 Yin Yi 2-color LED module 3MM
- KY-031 Knock Sensor module
- KY-032 Obstacle avoidance sensor module
- KY-033 Hunt sensor module
- KY-034 Automatic flashing colorful LED module
- KY-035 Class Bihor magnetic sensor
- KY-036 Metal touch sensor module
- KY-037 Sensitive microphone sensor module
- KY-038 Microphone sound sensor module
- KY-039 Detect the heartbeat module
- KY-040 Rotary encoder module
說明書下載: https://mega.nz/#!EUJjnCiY!Kyfdpfxo7HQNrEF9NE7B64FqJYsW3JFqqKzVGg25ExA
For Micro:bit
KY-001
https://github.com/adamboardman/microbit-onewire
https://www.iot-programmer.com/index.php/books/27-micro-bit-iot-in-c/chapters-micro-bit-iot-in-c/24-micro-bit-and-ds18b20-1-wire-temperature-sensor
KY-002, KY-004
http://learnlearn.uk/microbit/topics/microbit-input-from-external-switches/
